ESDEpoxyFlooringSolutions.
PRO ESD India Pvt. Ltd. engineers high-performance ESD epoxy flooring systems for electronics manufacturing and ESD Protected Areas — reliable static dissipation, industrial durability, and full compliance with international ESD standards.
Trusted across electronics, semiconductor & industrial ESD facilities
/ ESD Flooring Systems
Engineeredstaticcontrol,builttolast.
End-to-end ESD flooring — from surface preparation and copper grounding grids to conductive primers, epoxy topcoats and final resistance certification.

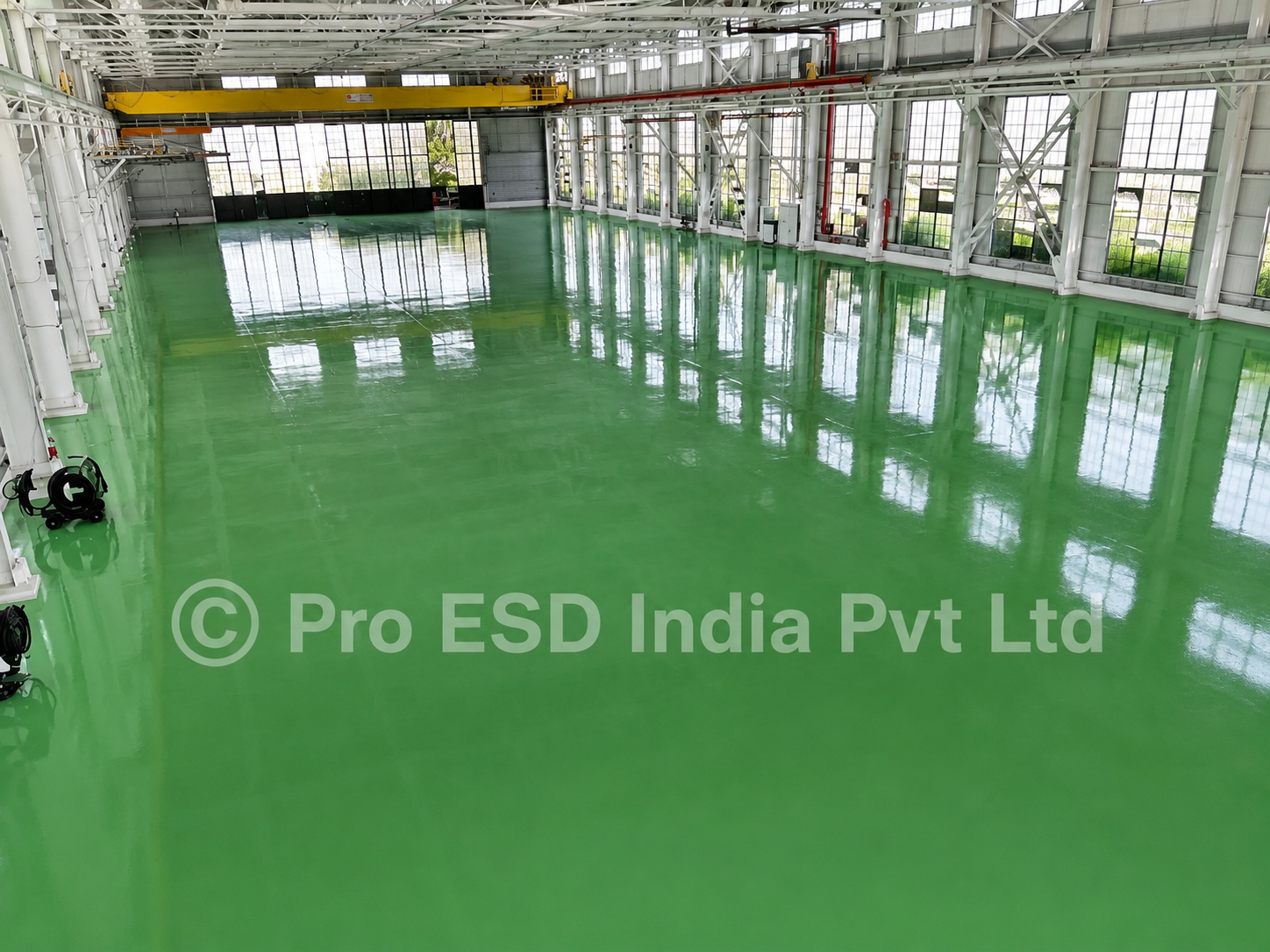

ESD Epoxy Flooring
Seamless static dissipative epoxy system engineered for ESD Protected Areas in electronics manufacturing.

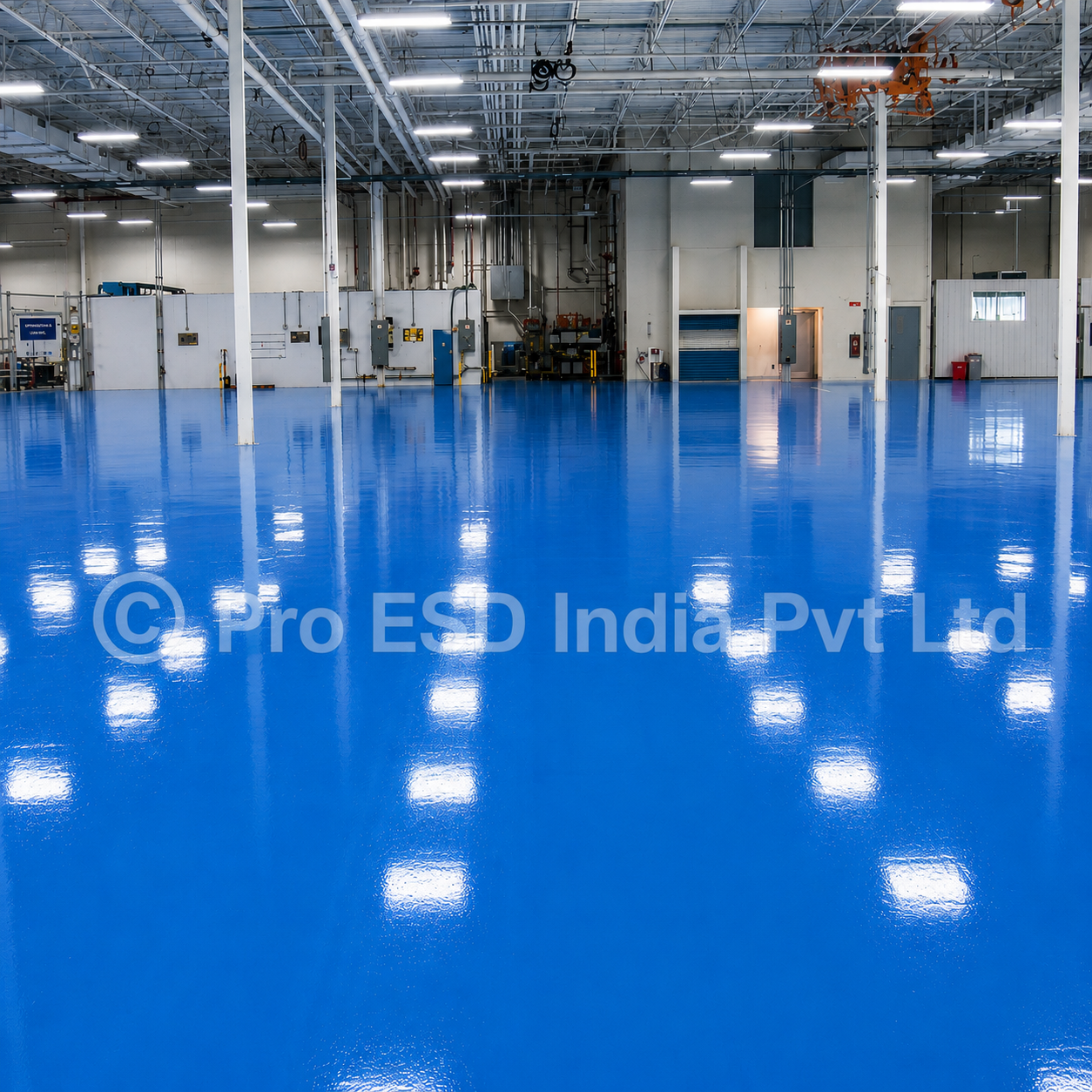

Conductive Flooring
Copper-grid grounded conductive epoxy for semiconductor fabs, PCB assembly and battery production lines.

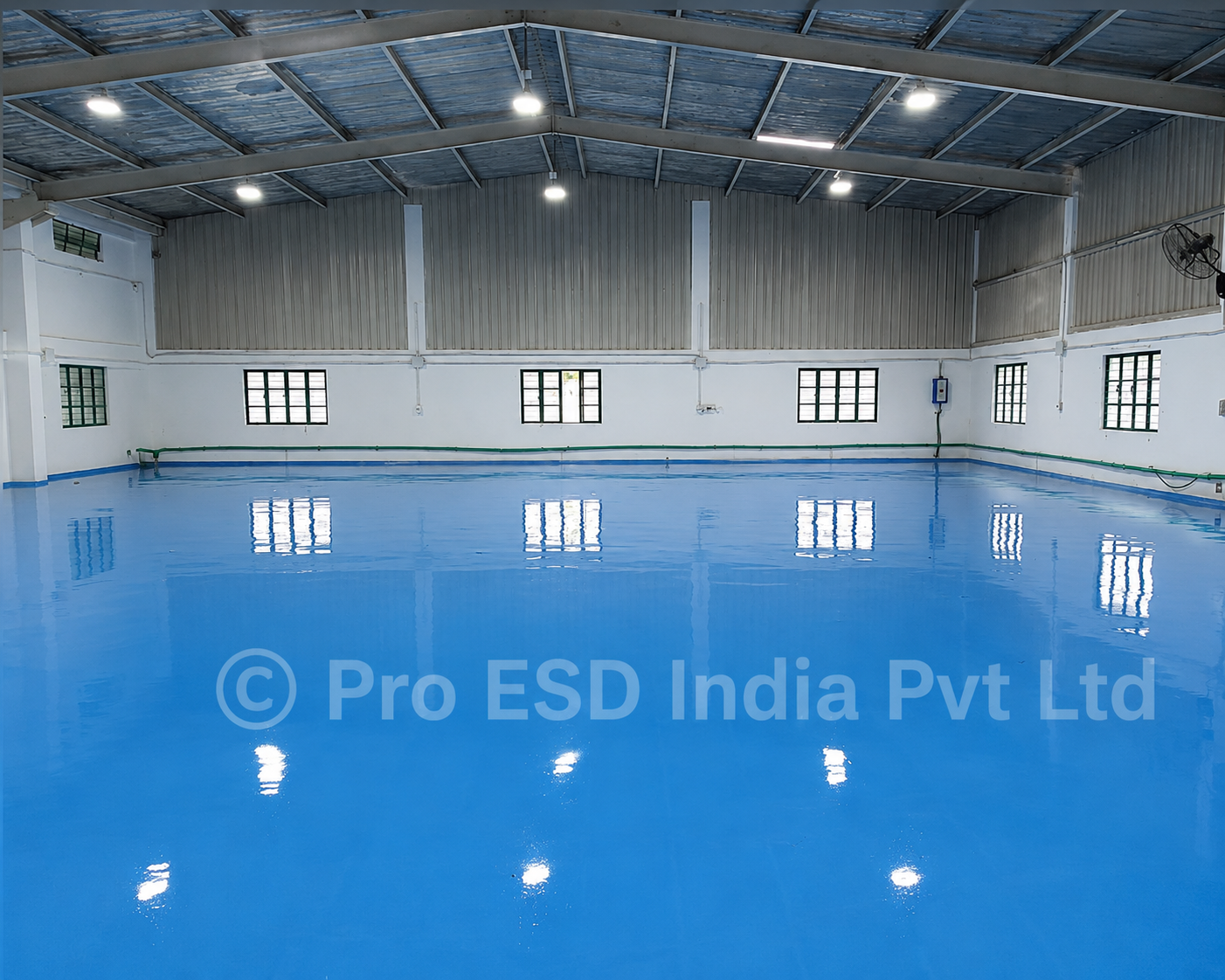

ESD Testing & Certification
Floor resistance testing, qualification and documentation per ANSI/ESD S20.20 and IEC 61340-5-1.
/ Benefits
ESDflooringengineeredfortheindustriesthatbuildelectronics.
ANSI/ESD S20.20 Compliant
Every installation is engineered, tested and documented to meet ANSI/ESD S20.20 and IEC 61340-5-1 requirements.
Static Dissipative Performance
Verified surface resistance between 1×10⁶ and 1×10⁹ Ω for reliable, controlled charge dissipation.
Conductive Grounding System
Copper grid and conductive primer network provide a continuous, low-impedance path to ground.
Heavy Duty Industrial Finish
Chemical and abrasion resistant epoxy topcoat built for forklifts, pallet trucks and 24/7 production.
Seamless Hygienic Surface
Monolithic, jointless finish ideal for cleanrooms, laboratories and precision electronics assembly.
Testing & Certification
Point-to-point, point-to-ground and walking body voltage testing with full compliance documentation.
/ INSTALLATION PROCESS
Aprecision-engineeredESDepoxyflooringinstallationprocess.
Site Inspection
Detailed on-site inspection to evaluate the existing floor condition, moisture level, substrate quality, and ESD flooring requirements before installation.
Surface Preparation
Diamond grinding, crack repairs, cleaning, and mechanical surface preparation to achieve the required substrate profile for maximum adhesion.
Bonding / Primer Application
Application of high-performance epoxy bonding primer to strengthen adhesion between the concrete substrate and the flooring system.
Epoxy Screed Application
Application of epoxy screed where required to repair, level, and strengthen damaged or uneven concrete surfaces before conductive coating.
Conductive Primer
Application of conductive primer to create a uniform conductive layer and prepare the surface for the ESD grounding system.
Copper Grid Tape Installation
Installation of copper grounding grid and earth connection network to ensure reliable static charge dissipation throughout the flooring system.
ESD Top Coat Application
Application of premium conductive or static dissipative ESD epoxy top coat to provide excellent durability, chemical resistance, and long-term static control.
ESD Earth Point Installation
Installation of designated ESD grounding points and connection to the facility earth network for effective electrical continuity.
ESD Testing & Certification
Complete floor qualification including surface resistance measurement, grounding verification, electrical performance testing, and final ESD compliance certification.
/ Industries Served
ESDflooringinstalledacrossthemostdemandingelectronicsfacilities.

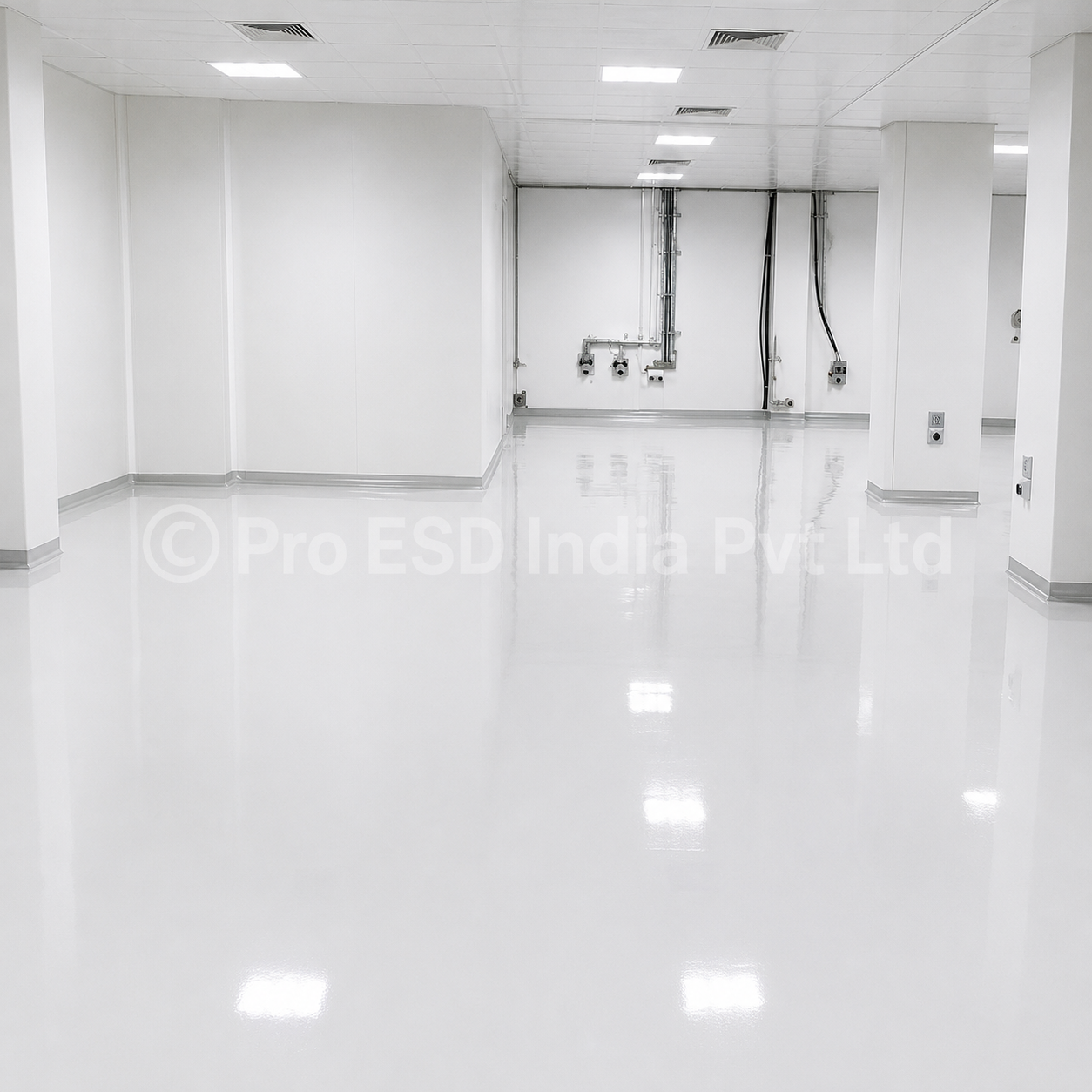

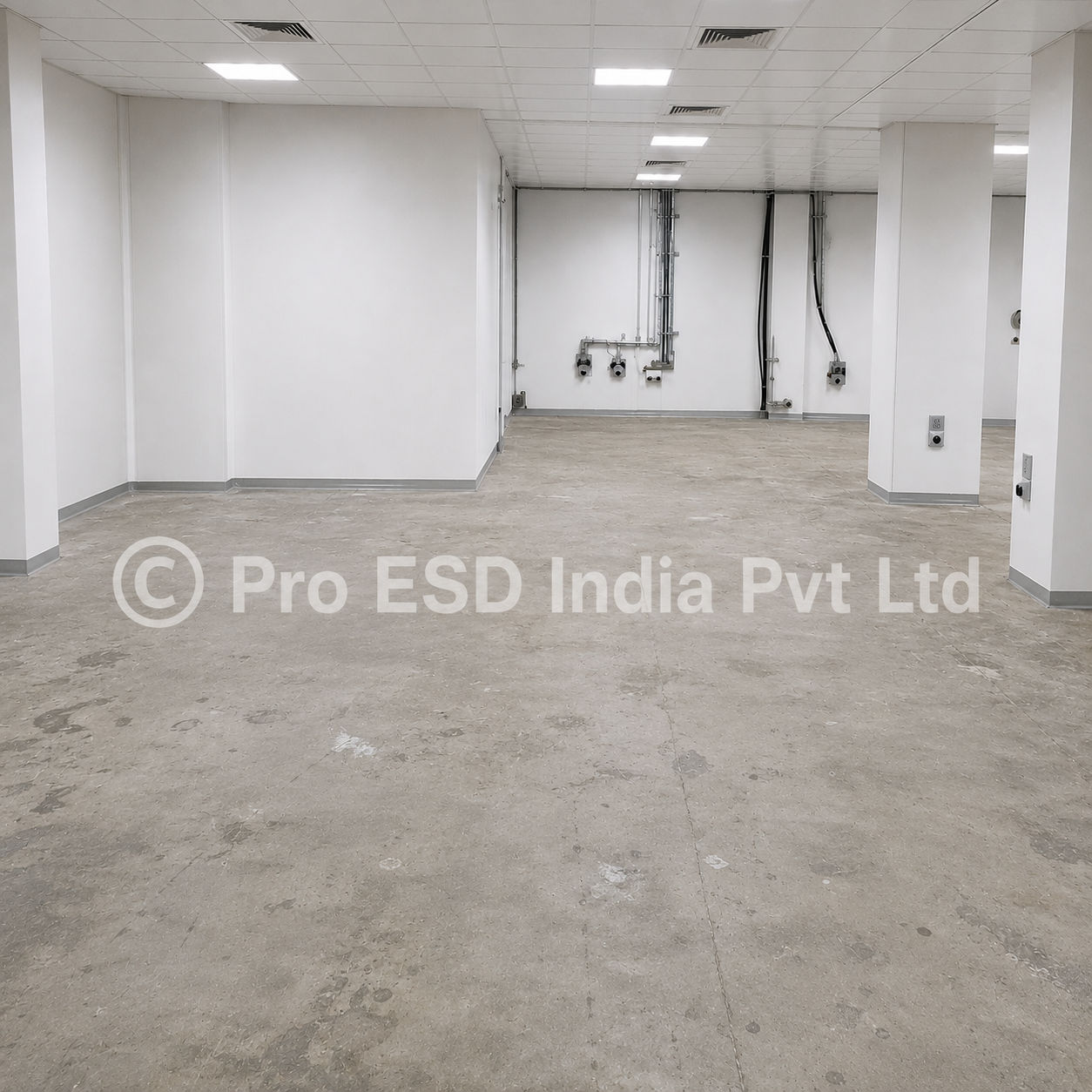

/ Floor Restoration
Damagedfloor.RestoredtoESDcertification.
/ Client Voices
WhatESDengineerssayaboutourwork.
"PRO ESD delivered a fully S20.20 compliant floor across our SMT lines with zero production downtime. Resistance readings were flawless on day one."
"The copper grid installation and conductive epoxy were executed with true engineering discipline. Our audit passed on the first review."
"Their technical team understood IEC 61340-5-1 inside out. Documentation and testing were as professional as the installation itself."
"We qualified their ESD flooring across three battery manufacturing sites. Consistent performance and outstanding technical support."
"PRO ESD delivered a fully S20.20 compliant floor across our SMT lines with zero production downtime. Resistance readings were flawless on day one."
"The copper grid installation and conductive epoxy were executed with true engineering discipline. Our audit passed on the first review."
"Their technical team understood IEC 61340-5-1 inside out. Documentation and testing were as professional as the installation itself."
"We qualified their ESD flooring across three battery manufacturing sites. Consistent performance and outstanding technical support."
"PRO ESD delivered a fully S20.20 compliant floor across our SMT lines with zero production downtime. Resistance readings were flawless on day one."
"The copper grid installation and conductive epoxy were executed with true engineering discipline. Our audit passed on the first review."
"Their technical team understood IEC 61340-5-1 inside out. Documentation and testing were as professional as the installation itself."
"We qualified their ESD flooring across three battery manufacturing sites. Consistent performance and outstanding technical support."
/ FAQ
ESDflooring—answeredbyourspecialists.
